Simulator Converters
Discontinued product from 10/2006. Without replacement, we've closed EPROM simulators line.
Part identification:
XXXX/YYYY ZZZZ
- XXXX- type of socket and number of pins on device side
- YYYY- type of socket and number of pins on simulator/emulator side
- ZZZZ- additional identification
Example:
PLCC44/DIL40 MCS51
PLCC32/DIL32
- assigned for simulating/emulating all PLCC32 devices
- mechanical life - 500 cycles
- ord. no.: 70-0047

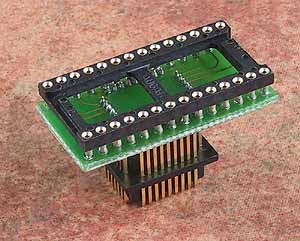

PLCC32/DIL28 EPROM
- assigned for simulating/emulating such EPROM in PLCC32, which have 28 pins in DIL (e.g. 27256, 27512)
- NC pins 1,12,17,26
- mechanical life - 500 cycles
- ord. no.: 70-0091
PLCC44/DIL40 MCS51
- assigned for emulating microcontrollers '51 family in socket PLCC44
- NC pins 1,12,23,34
- mechanical life - 500 cycles
- ord. no.: 70-0049
DIL40W/DIL2x32 (16bit->2x8bit)
- assigned for simulating 16-bit EPROMs in DIL40 socket with two 8-bit simulators
- ord. no.: 70-0014
