Discontinued product! Please go to discontinued products section to find the replacement.

  • top board of BGA adapters
  • ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball height and body thickness.
  • The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.
  • operating (mechanical) warranty of ZIF socket - 500,000 actuations
  • made in Slovakia
Ord. no. 70-0944
Socket ZIF BGA196 (depopulated array of (132) spring probes), ClamShell type
Bottom 8x25 + 3x20 pins, square, 0.6x0.6mm
Class BGA/LGA
Subclass BGA-Top

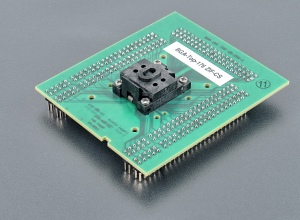

BGA-Top-176 ZIF-CS, 70-0944 Move the cursor over the picture for additional view.

Adapter manual

  • For work with BGA device it is necessary put together BGA-Top-176 ZIF-CS with some BGA-Bottom-X board according to the information provided by PG4UW software for each particular device (menu Device/ Device info).
  • Do not directly touch the pins of the adapter, because dirt may cause errors during programming of device.
  • The picture show, how to put together the BGA-Top-X ZIF-CS and BGA-Bottom-X boards to have complete BGA adapter.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%..80%, non condensing.
Help for BGA-Top-176 ZIF-CS, 70-0944

Software note

  • If software version, you're using currently, doesn't contain support for this programming module, please download the latest version of software - Regular or OnDemand - from our web site.


Accepted package(s)

BGA package Package
Design
NAMESYMBOLMINNOMMAX
ProfileA0.911.1
Ball HeightA10.20.250.3
Body ThicknessA20.70.760.82
Ball Diameterb0.250.30.35
Body SizeD7.988.1
Body SizeE7.988.1
Ball Pitche-0.5-
Ball Array DGD-14-
Ball Array EGE-14-
NAMESYMBOLMINNOMMAX
ProfileA0.80.91
Ball HeightA10.180.230.28
Body ThicknessA2---
Ball Diameterb0.250.30.35
Body SizeD7.988.1
Body SizeE7.988.1
Ball Pitche-0.5-
Ball Array DGD-14-
Ball Array EGE-14-
NAMESYMBOLMINNOMMAX
ProfileA--1
Ball HeightA10.15--
Body ThicknessA2-0.74-
Ball Diameterb0.2680.3180.368
Body SizeD7.988.1
Body SizeE7.988.1
Ball Pitche-0.5-
Ball Array DGD-14-
Ball Array EGE-14-
NAMESYMBOLMINNOMMAX
ProfileA0.91.231.35
Ball HeightA10.15--
Body ThicknessA2--1.1
Ball Diameterb0.250.30.35
Body SizeD-8-
Body SizeE-8-
Ball Pitche-0.5-
Ball Array DGD-14-
Ball Array EGE-14-
NAMESYMBOLMINNOMMAX
ProfileA0.91.231.35
Ball HeightA10.15--
Body ThicknessA2--1.1
Ball Diameterb0.250.30.35
Body SizeD-8-
Body SizeE-8-
Ball Pitche-0.5-
Ball Array DGD-14-
Ball Array EGE-14-
🍪
