AutoBee-322
Desktop Automated 8 x 64-pindrive concurrent multiprogramming system
The AutoBee-322 is designed to enhance productivity, ensure precise programming, and streamline the workflow in various industrial applications. With its high throughput, advanced vision system, and user-friendly control software, the AutoBee-322 stands out as a robust and reliable solution for automated device programming. Best of all, it completely eliminates the need for manual work with the devices, allowing for a fully automated and hands-free programming process.
Short description:
- office automation design
- small base dimension / low weight
- connection to PC workstation: USB 3.0
- easy to use software
- the GUI software provides automatic history record function
- high throughput - 500 units per hour (zero programming time)
- build-in universal device programmer BeeHive304
- warranty
- machine: 2 years
- programmer: 3 years
Key Features and Specifications
Programming and Handling

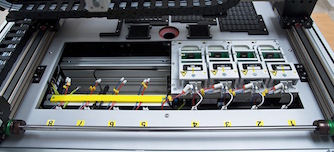

- Programmers: The machine is compatible with up to two BeeHive304 programmers, allowing parallel programming of multiple devices to increase throughput. In total, AutoBee-322 supports 8x 64-pindrive.

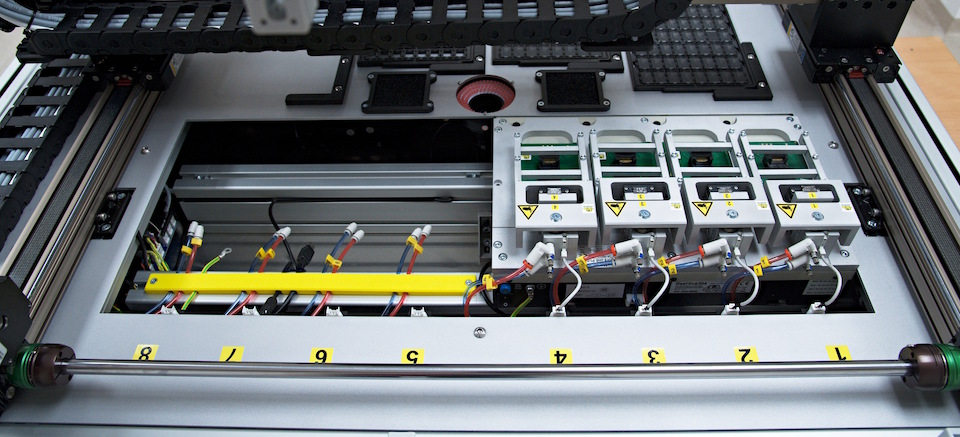

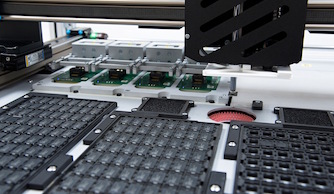

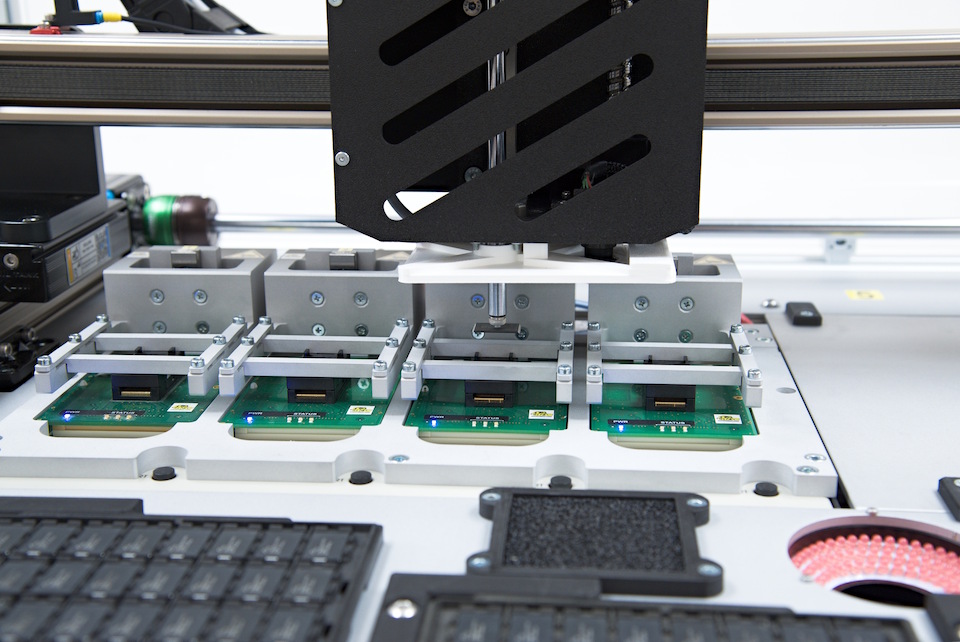

- ZIF sockets on the AutoBee-322 are effectively controlled by the SACU (Sockets Actuation Control Unit). This integration ensures precise and reliable control of the sockets and speeds up their opening and closing.
- ZIF sockets on the AutoBee-322 are effectively controlled by the SACU (Sockets Actuation Control Unit). This integration ensures precise and reliable control of the sockets and speeds up their opening and closing.

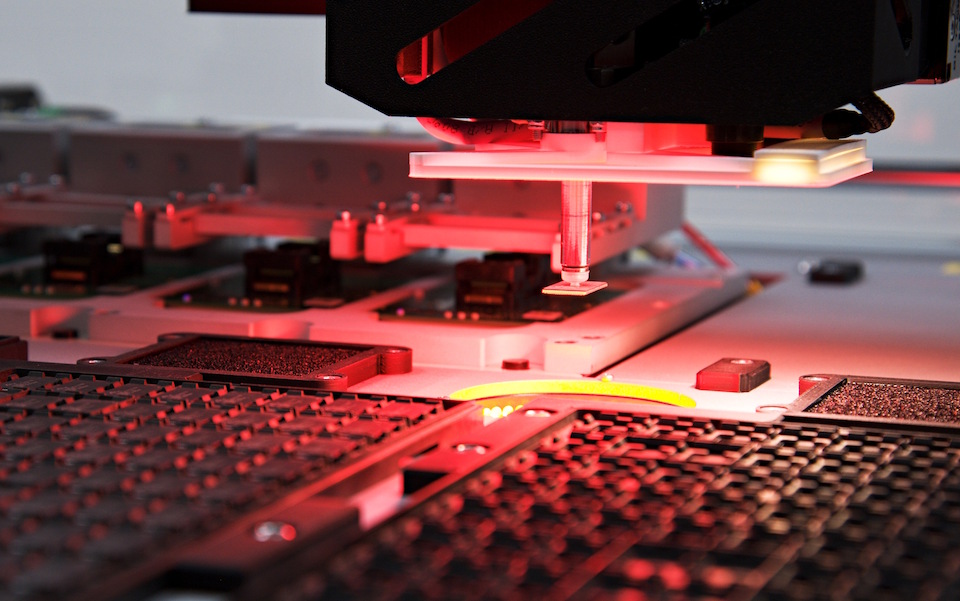

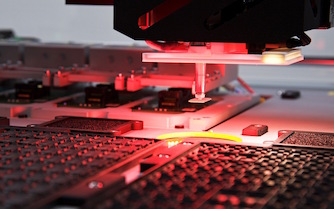

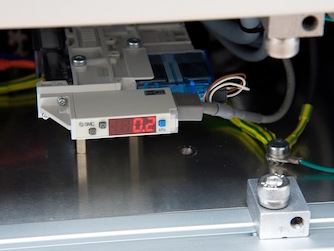

- Vacuum Nozzle: The machine uses a vacuum nozzle for handling components, ensuring secure and precise placement during the programming process.
- Units per Hour (UPH): Capable of processing up to 500 units per hour, making it suitable for medium to high-volume production.
- No Manual Work Required: Fully automates the programming process, eliminating the need for manual handling of devices, thus increasing efficiency and reducing the risk of human error.
![AutoBee-322](https://www.elnec.com/img/elnec_autobee332_300b.jpg)
![AutoBee-322](https://www.elnec.com/img/elnec_autobee332_300c.jpg)
Movement System
- Cartesian Coordinate System (XYZA): Employs belt linear guides for smooth and precise movement through the X and Y axes. The Z axis uses a ball screw. Axis A is rotary
- Drive: AutoBee-322's axes are driven by Nanotec stepper motors, providing precise control and smooth movement throughout the programming process.
- Repeat Position Accuracy: Offers high precision with a repeat position accuracy of 0.05/300 mm, ensuring consistent and reliable operations.
![AutoBee-322](https://www.elnec.com/img/elnec_autobee332_300d.jpg)
![AutoBee-322](https://www.elnec.com/img/elnec_autobee332_300e.jpg)
Input/Output and Media Handling

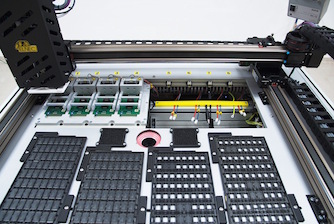

- Tray-Based Media Handling: Components are handled using trays, which simplifies the loading and unloading process.
- Media Capacity: The machine supports 2 media trays along with a reject tray for defective components, ensuring continuous operation without frequent interruptions.
- Tray Sizes::
- Minimum Tray Size: 283 x 68 mm
- Maximum Tray Size: 338 x 158 mm
Vision System
- Number of Cameras: 2 cameras are integrated into the machine:
- Up Camera: USB 720p camera used to orient the user in the machine space.
- Recognition Camera: 1.3 Mpix Monochrome CMOS Camera, providing high-quality imaging for precise component recognition.
- Backlight: Equipped with a 6W ring light to provide consistent and clear illumination, improving the accuracy of the vision system.
Throughput | 500 U.P.H ( zero programming time) | |
---|---|---|
Machine Specifications | Type Number of Heads Supported Programmers Nozzle Type Number of Programmers Supported Number of Cameras Input/Output Media Type Units per Hour (UPH) Number of Media | Desktop 1 BeeHive304 Vacuum Up to 2 BeeHive304 programmers 2 Tray up to 500 (depends on the use) 2 + Reject tray |
Power | Power Supply Air Supply Maximum Power Consumption Data Interface Noise Level | 220V/50Hz air pressure 0.4 MPa, max. 0.7 MPa, air consumption 65 l/min max. 590W USB 3.0 70 dB |
Dimensions and Weight | Total Dimensions (WxHxD) Weight Height with Doors Open | 1111 x 980(730) x 925 mm (without signalling column) 70 kg 1240 mm |
Operational Characteristics | Drive type Motors Repeat Position Accuracy Workspace Size (XYZ) Endstop Sensors Type Minimum Tray Size Maximum Tray Size Safety Door Sensor Up Camera Recognition Camera Probe Z Backlight Axis Feed Rates | Belt (X,Y), Ball screw (Z) Stepper motors NEMA 23(X,Y)/17(Z)/11(A) 0.05/300 mm 595 x 460 x 52 mm Optical 283 x 68 mm 338 x 158 mm Mechanical USB 720p 1.3 Mpix Monochrome CMOS Camera Touch detected through a nozzle using an optical sensor Ring light 6W X Axis: 1000 mm/s Y Axis: 700 mm/s Z Axis: 250 mm/s |
System requirements | OS Processor Memory Storage Monitor | Windows 7/8/10/11 Quad core processor (Core i5 or better) 4 GB RAM 3000 MB available space with a resolution of 1034 x 810 and higher. |
General
Programmer inside programming automate - BeeHive304
![BeeHive304 device programmer](https://www.elnec.com/img/elnec_beehive304_300.jpg)
Basic specification
- two independent universal programming sites (BeeProg3 based) in one unit
- extremely fast programming, one of the fastest programmers in this category
- comfortable and easy to use control program, work with all versions of MS Windows from Windows 7 to Windows 11 (32-bit and 64-bit) running at x86/x64 compatible PC
- unique quick reaction to customer's needs - software update can be ready within a day from request by OnDemand software
- made in Slovakia
- warranty - 3 years
Dimensions and Ergonomics
- Total Dimensions:
- Length: 1111 mm
- Width: 925 mm
- Height: 980 mm (without signaling column: 730mm)
- Weight: 70 kg
- Height with Doors Open: 1240 mm
- Workspace Size:
- X: 595 mm
- Y: 460 mm
- Z: 52 mm
- A: 360°
Safety and Sensors
- Endstop Sensors: Optical sensors are used to ensure accurate positioning and prevent over-travel.
- Safety Door Sensor: A mechanical sensor ensures that the machine operates safely and stops when the safety door is opened.
- Emergency Stop Button: provides operators with a quick and efficient means of stopping machine operation in emergency situations.

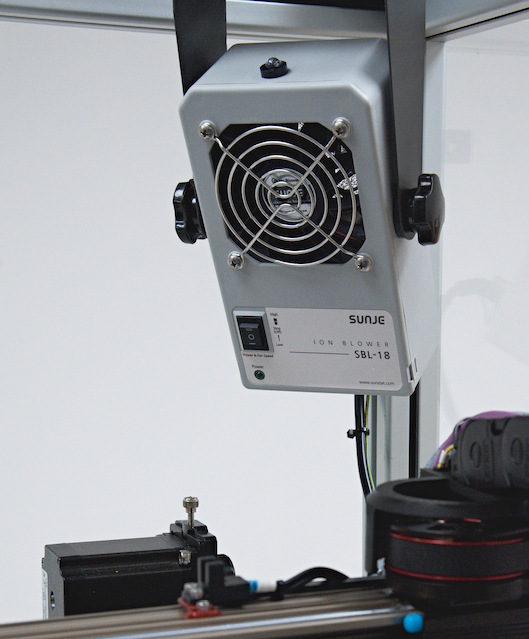

- ESD protection: AutoBee-322 includes many ESD safe features to prevent damage to sensitive electronic equipment. At the same time, the entire AutoBee-322 structure is grounded.
Power Requirements
- Power Supply: 220V/50Hz
- Maximum Power Consumption: 590W
- Air Supply: air pressure 0.4 MPa, max. 0.7 MPa, air consumption 65 l/min max.
- Noise Level: approx. 70 dB
PC system requirements
To ensure optimal performance and a seamless user experience with the AutoBee-322 machine, please make sure your PC system meets the following requirements:
- Operating System: Windows 7, Windows 8, Windows 10, or Windows 11
- Processor: Quad-core processor (Intel Core i5 or better recommended)
- Memory: 4 GB RAM (minimum)
- Storage: 3000 MB available space on the hard drive
- Monitor: Display with a resolution of 1034 x 810 pixels or higher
Additional Features
- Probe Z: Utilizes an optical sensor to detect touch through the nozzle, ensuring precise height measurement for component placement.
- Signaling Column: Provides clear visual cues to inform operators about the machine's status and programming progress.
Connectivity and Interface
- Data Interface: USB 3.0, providing high-speed data transfer for programming tasks.
![AutoBee-221D Software interface](https://www.elnec.com/img/elnec_AutoBee322_Run_screenshot_300.png)
Software
- Control Application PG4UWAUTO: offers intuitive control of the AutoBee-322 machine, allowing users to easily manage and monitor the programming process. Key features include:
- Seamless Integration: Fully integrated with the AutoBee-322 hardware, ensuring smooth operation and communication between the software and machine.
- User-Friendly Interface: Designed with an easy-to-navigate interface, making it accessible for operators of all skill levels.
- Detailed Logging: Automatically records programming activities and results, providing detailed logs for quality control and troubleshooting.
- Customizable Settings: Adjust machine parameters and settings to fit specific programming needs and optimize performance.
- Step-by-Step Guidance: Offers clear instructions and visual cues to guide users through the setup and operation of the AutoBee-322 machine.
- PG4UWMC connectivity: PG4UWAUTO seamlessly integrates with PG4UWMC for remote control functionality. This allows users to control the AutoBee-322 machine and other Elnec devices directly from the PG4UWAUTO interface.
AutoBee-322 price also include
- free technical support (WebForm/e-mail based)
- free life-time software update via Internet
The information in this document are subject to change without notice.
